6” Bracket Kit for Mighty Prime
P # 1006 & 1006-B

Description

This 6” Mighty Prime Mounting Bracket Kit is used when mounting a Mighty Prime to any of the 6” Clear View Filter Assemblies. When not mounting the primer to a Clear View 6” Filter assembly, the 4” Mighty Prime Mounting Bracket Kit would work best for remote mounting. Brackets are made out of 6061 T6 Billet Aluminum for Strength and Durability. Brackets come Clear or Black anodized.

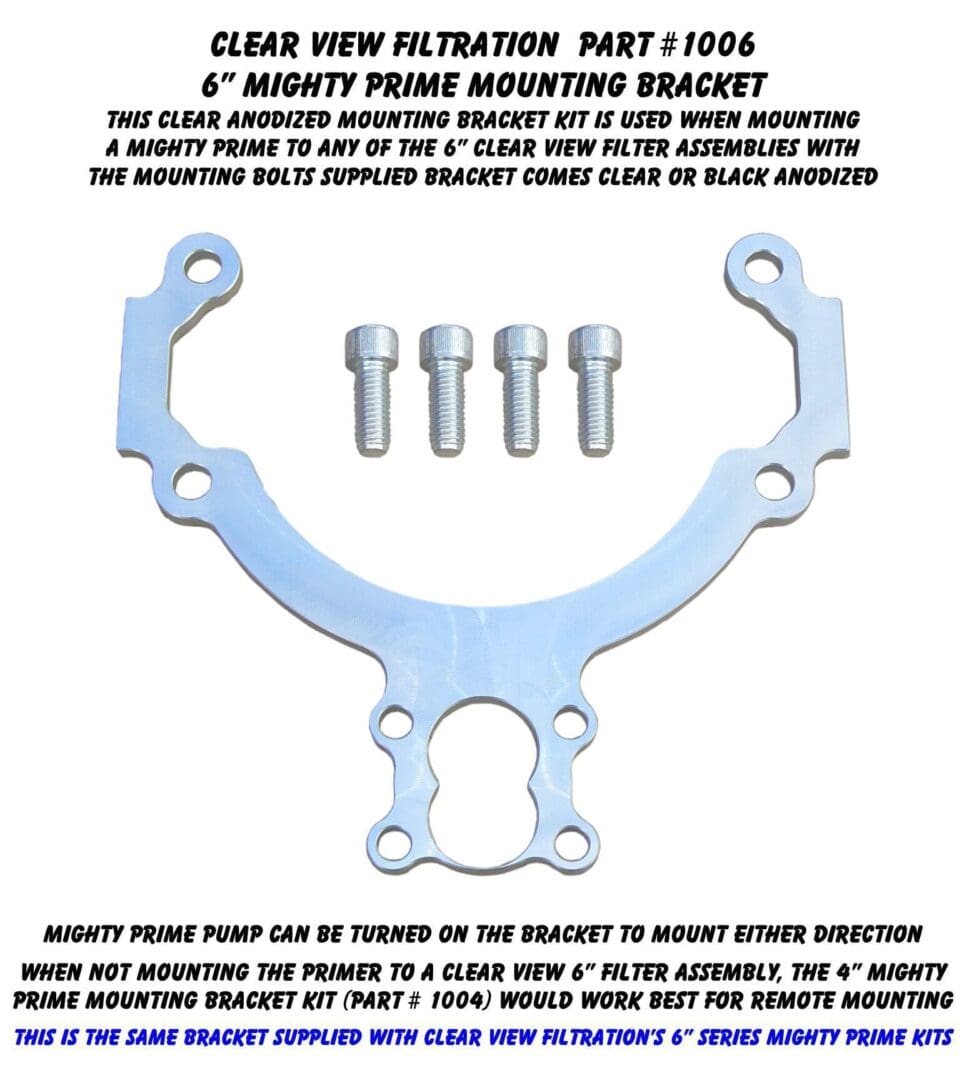

CVF Part Number for Clear anodized 6″ Mighty Prime Bracket only:  1006

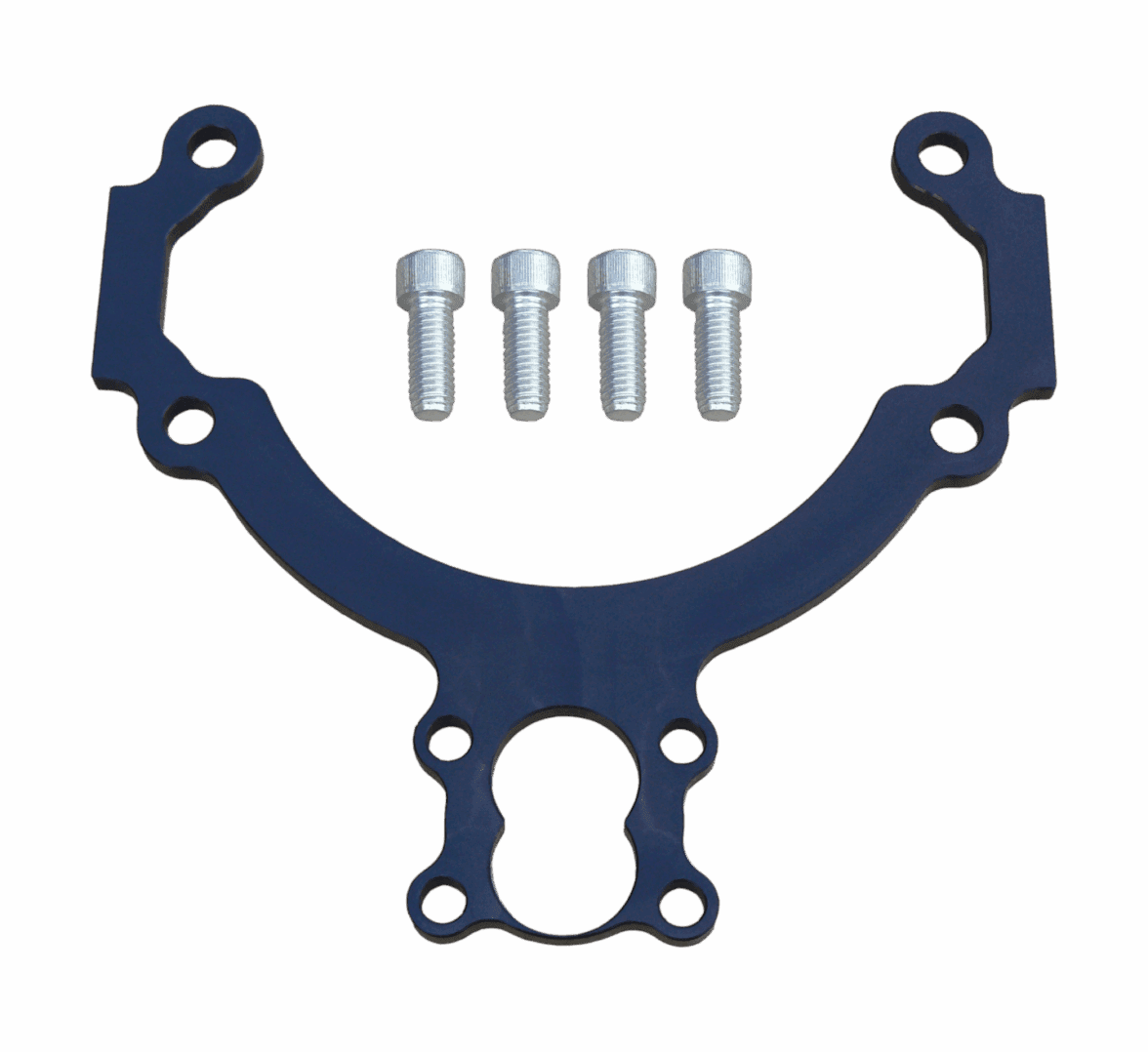

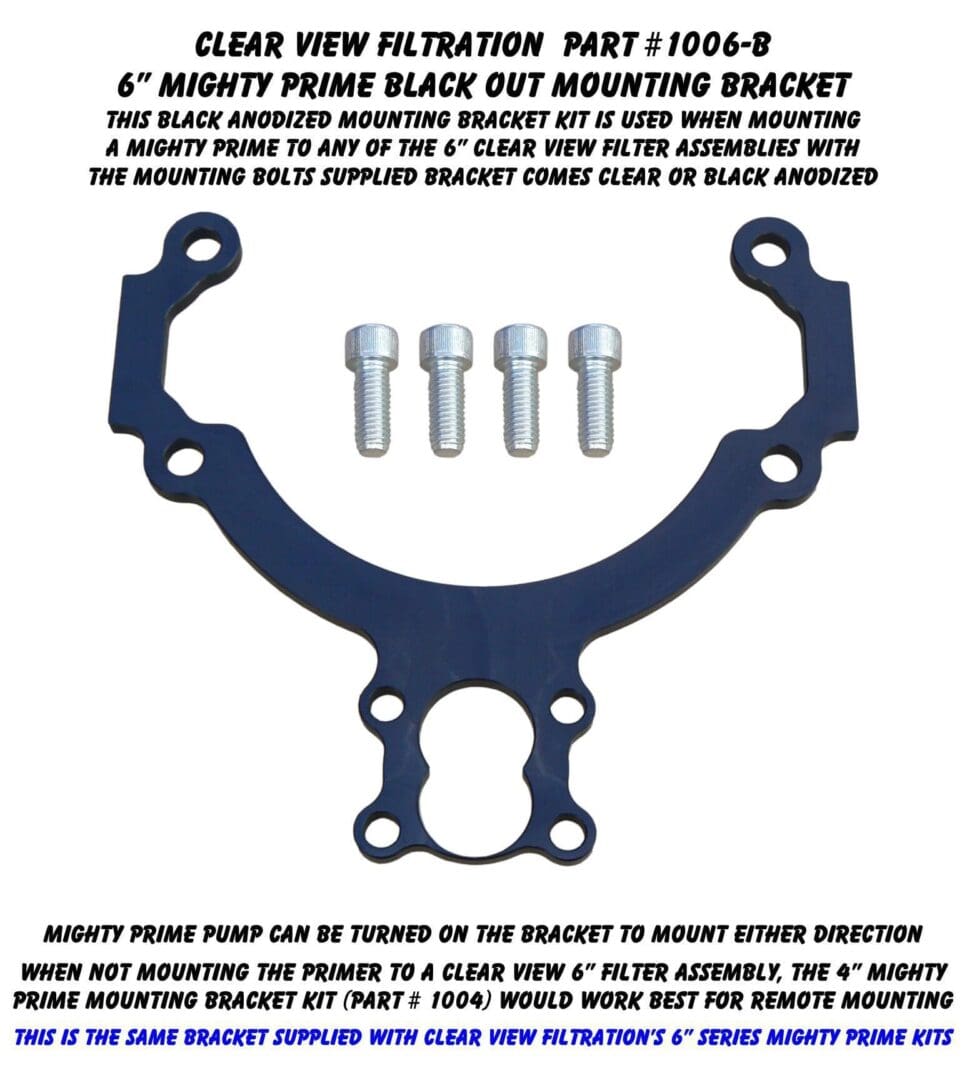

CVF Part Number for Black anodized 6″ Mighty Prime Bracket only:  1006-B

Hardware Included:  Includes four 3/8” x 1” Long Allen Head Bolts

Bracket Material:  6061 T6 Billet Aluminum

Bracket Finish:  Clear or Black Anodized

Quantity:  Sold as Kit

Notes: Can be used with 6” See Through Filter Assemblies. When not mounting the primer to a Clear View 6” Filter assembly, the 4” Mighty Prime Mounting Bracket Kit would work best for remote mounting. **All 6″ Priming System Kits are sold with this exact bracket included, do not need to purchase in addition unless using otherwise.

Description: The 6” Mighty Prime Mounting Bracket Kit mounts to the bottom of the Mighty Prime Housing and to any 6” Clear View Filter using the supplied mounting bolts. The Mighty Prime Pump can be turned on this bracket to mount either direction, so the inlet port can flow in either direction to help with plumbing. This Primer Mounting bracket goes in between the Clear View Filter Base and the existing Filter Mounting Bracket. Use the slightly longer bolts supplied with the kit when mounting. This mounts the Primer next to the Filter for convenience, it will hang out approx. 2.25” overall from the filters edge, when mounted. Brackets are made out of 6061 T6 Billet Aluminum for Strength and Durability. This Bracket is Clear anodized for Easier Maintenance. Kit includes Mounting Bolts.

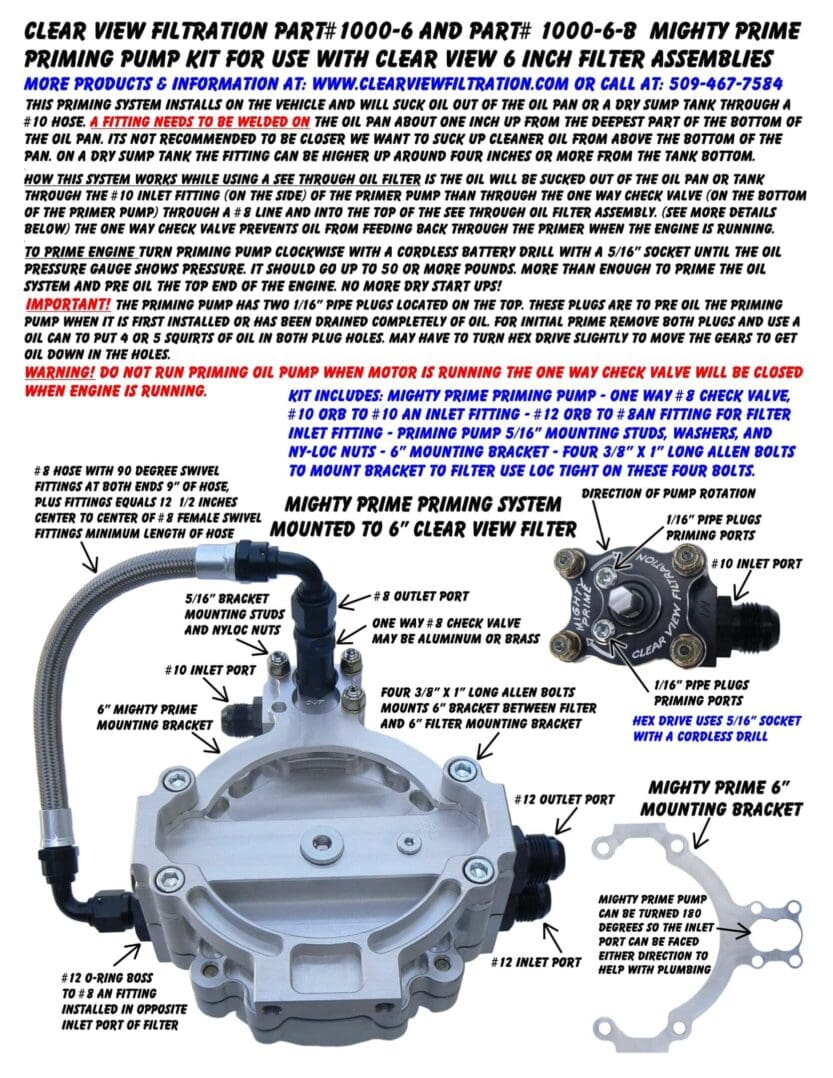

Product Images & Directions (if available):

Detailed View with Components Explained:
