Replacement Seal Kit for Mighty Prime
P # 1001

Description

This Replacement O-Ring and Seal Kit is for use with Clear View Filtration’s Mighty Prime Priming Systems only.

CVF Part Number for Mighty Prime Replacement Seal Kit: 1001

Shaft Seal Inside Diameter: 0.375”

Shaft Seal Material: Steel Case with Nitrile Rubber Lip

O-Ring Material: Viton®

O-Ring Color: Brown

Shaft O-Ring Thickness: 1/16”

Body O-Ring Thickness: 3/32”

One Way Check Valve O-Rings Thickness: 5/64”

Quantity: Sold as Kit of 5 pieces total

Notes: Can only be used with Clear View’s Mighty Prime Priming Systems.

Description: This Replacement O-Ring and Seal Kit is for use with Clear View Filtration’s Mighty Prime Priming Systems only. This Kit consists of four O-Rings and one shaft seal.

The outside Shaft Seal is a Rotary Shaft Seal with Steel Metal Case and Nitrile Rubber Lip Material.

The 1/16” Viton® O-Ring fits into the groove in the billet top to seal around the center shaft.

The 3/32” Viton® O-Ring fits into the groove in the billet body of the housing to seal the top.

The 2 x 5/64” O-Rings fit the one way check valve.

O-Rings are made of Viton® which is heat, chemical, fuel and alcohol resistant.

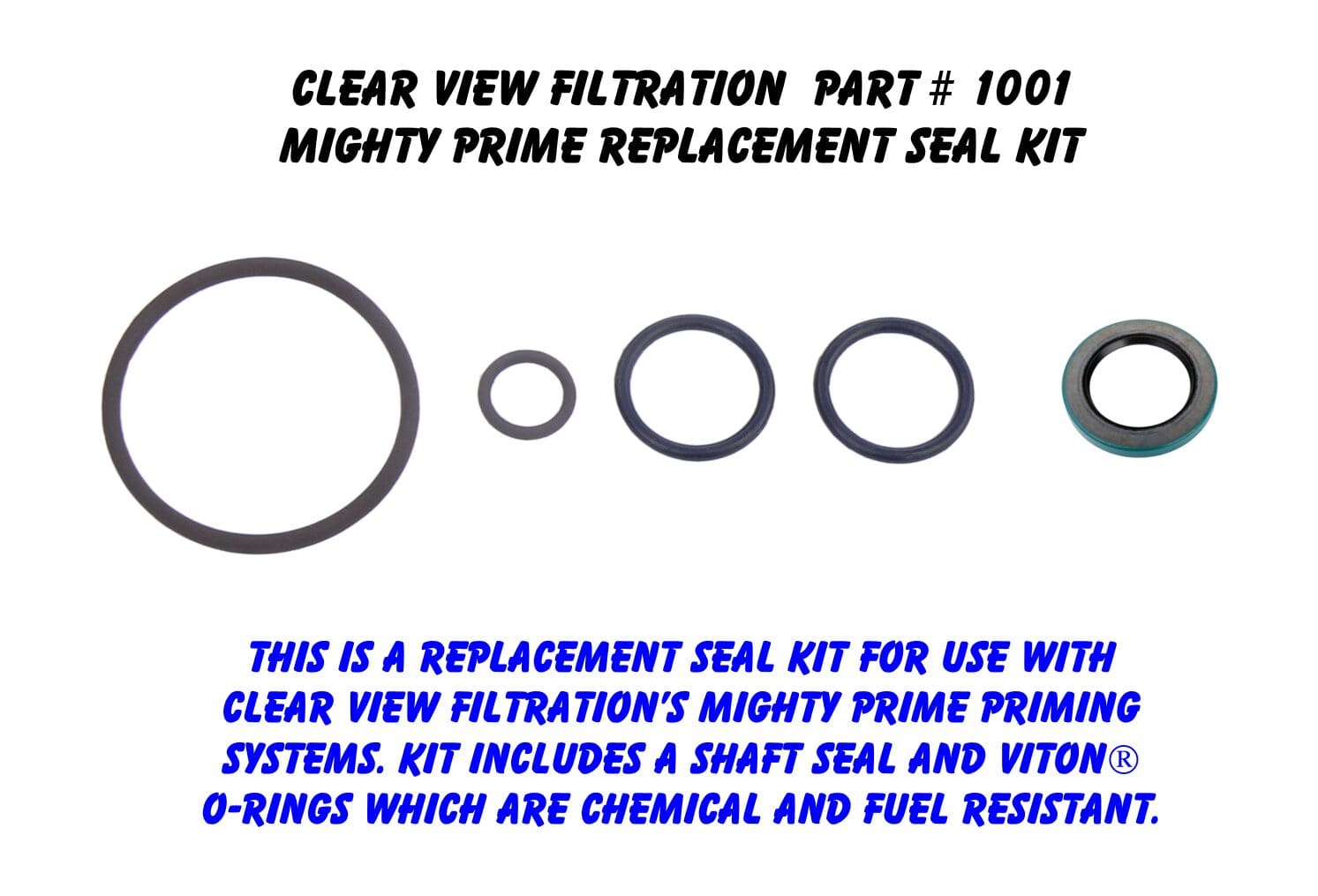

Detailed View with Components Explained:
