6″ Screw-On Filter Assembly
P # 125-115 & 125-115-B

Description

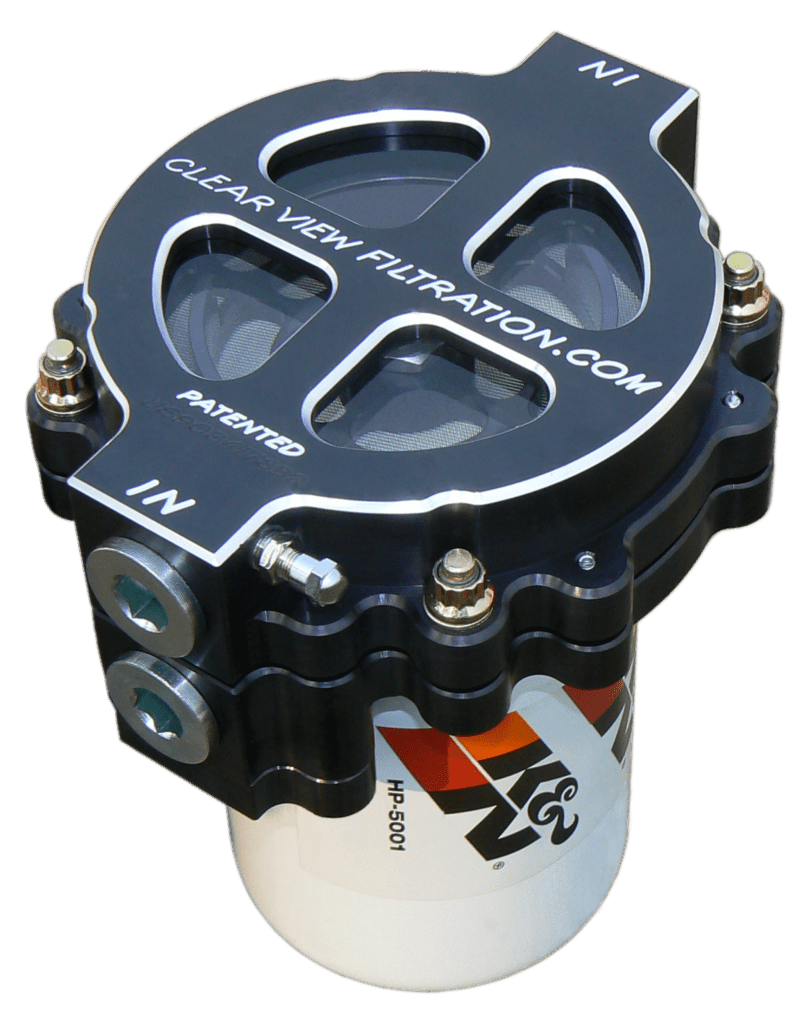

This 6″ Screw-On Filters were designed and recommend for tractor pulling and other motor sports ran on dirt. Its also for the user who wants to filter microscopic and dust particles out of a fluid or oil system that flows high volumes of fluid. The oil first flows through the See Through Filter which the filter element traps the larger particles that can be viewed and inspected while the microscopic particles flow into the disposable filter and are filtered out of the oil. The filtered oil then flows out of the filter assembly through the outlet opening. This dual stage filter will extend the life and flow of the disposable filter and still allow visual inspection of filtered particles without draining or leaking any fluid, unbolting or loosening any fasteners or fittings and with out any loss of oil. Seeing these filtered particles will help determine if they are from normal use or from bearings and other components excessively wearing in the engine or machinery supplying the Filter Assembly.

**When Running a System 1 or Other Metal Canister Type Filter ; Part # 125-115 and Part #126-380 are very similar filters except:

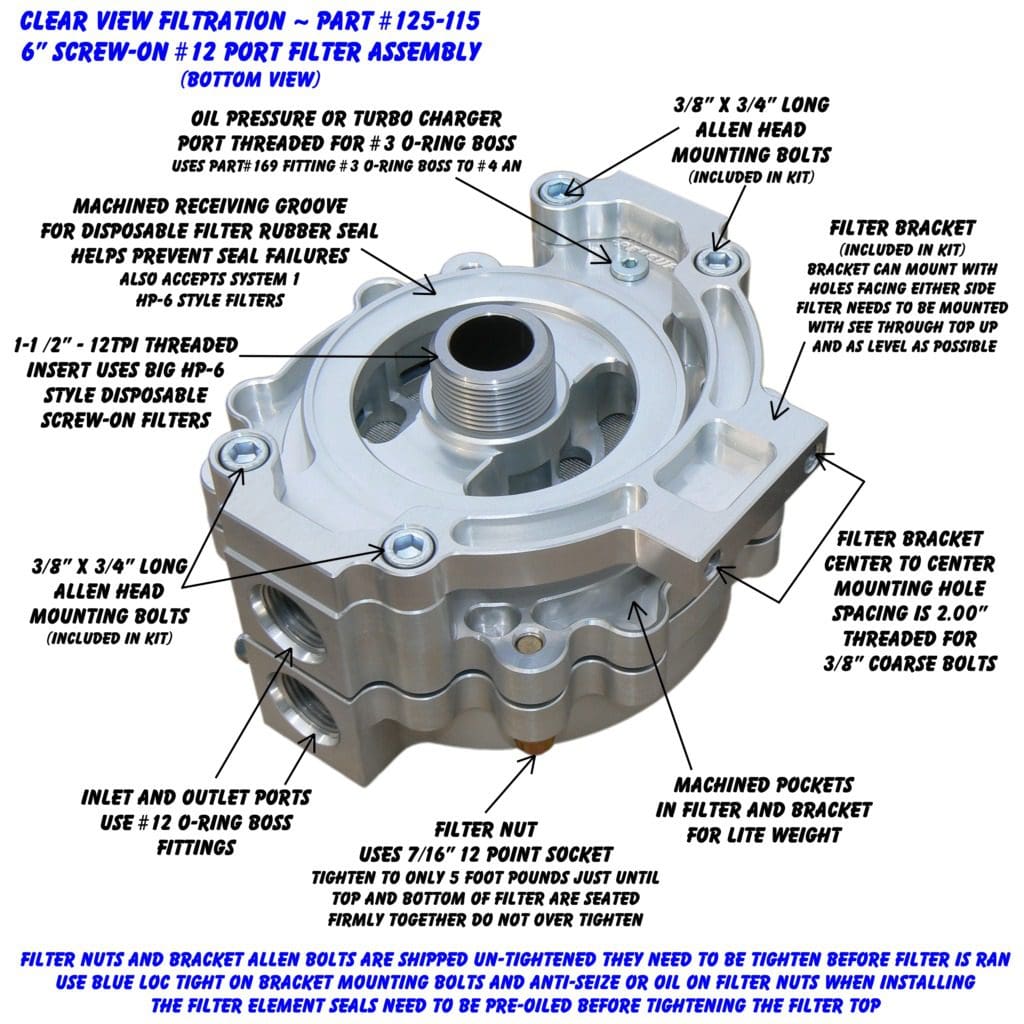

P# 125-115 filter has a O-Ring Receiver Groove machined in the bottom which helps prevent the disposable filter seal from blowing out. (Note; when using P#125 only a spin on disposable filter can be used)
P # 126-380 filter has a Flat Sealing Surface on the bottom so a System 1 O-Ring or Other Metal Canister Filters can seal correctly.
(Note; when using P#126 either System 1 or a spin on disposable filters can be used)
