Name: 6″ Dry-Sump Oil Filter Assembly P # 101-380 &amp; 101-380-B
SKU: 101-115
Availability: InStock

Description

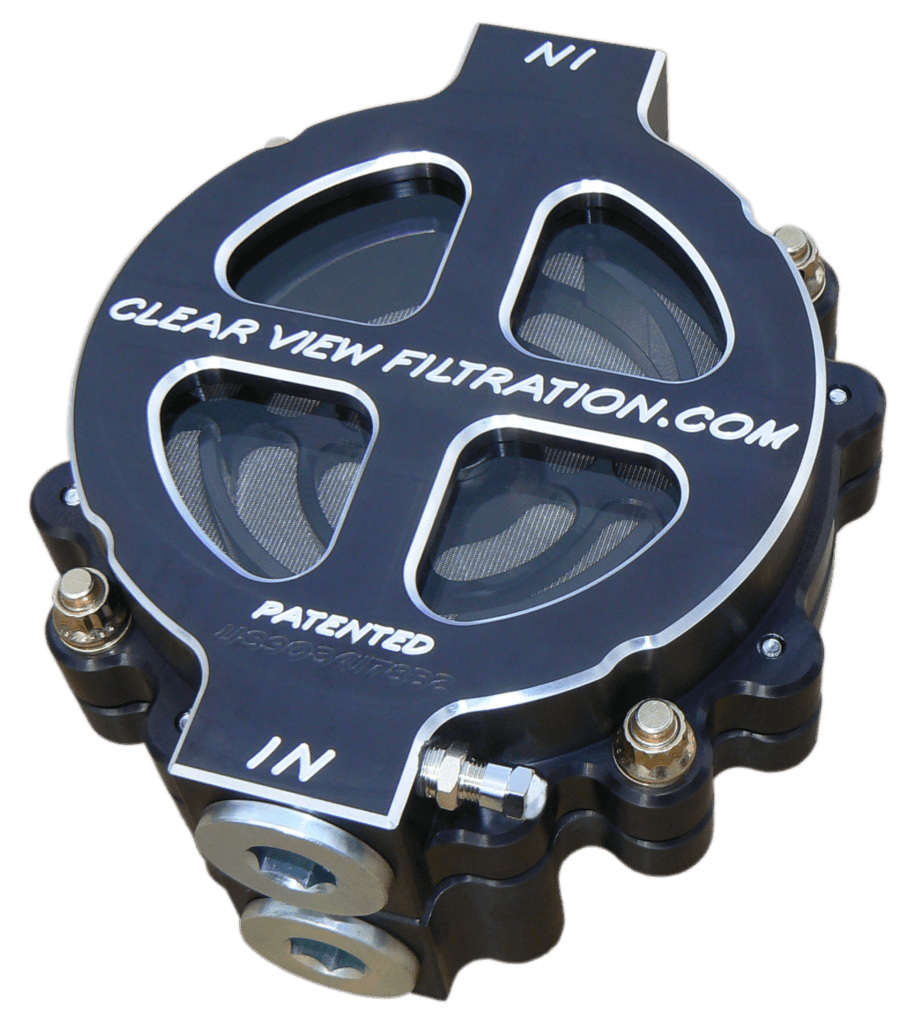

6″ Dry-Sump See Through Filter Assembly with #16 Ports and 115 Micron Element, for running all weight oils up to 70 weight. Designed to be mounted between the Dry-sump oil pump and the oil tank on a #16 scavenge line. Also for applications where the oil tank has a flat bottom and running 60 or 70 weight oil like a lot of super charged funny cars and tractor pullers. Flat bottom unlike tapered bottom tanks particles will settle to the bottom and may not be sucked through the pressure side of the oil pump for inspection. Tapered bottom tanks can run the See Through filter on the pressure side.

See Through Oil Filters can be used for many applications including Racing, Marine, Automotive, Farm, and for Industrial Hydraulic Systems. These Patented Oil Filter Assemblies allow the user to visually see oil pumping through the filter, which helps to determine the condition of the oil. When oil is not being pumped through the filter it can quickly drained using an air chuck for filling tires and compressed air. A hand bicycle pump will also work. Apply a small shot of air to the air fitting on the side of the inlet opening. Oil will empty out of the assembly in seconds exposing the filter element and filtered particles, even when filtering non transparent fluids like dirty oil. The See Through top allows the user to visually inspect particles and contaminants that were filtered out of the system to determine if they are from normal use or from bearings and other components excessively wearing in the engine or machinery supplying the Filter Assembly.

CVF Part Number for Clear anodized Filter: 101-115

CVF Part Number for Black anodized Filter: 101-115-B

Smallest Particles Filtered: 115 Microns

Bypass Relief Valve: No

Inlet & Outlet Fitting: #16 O-Ring Boss – 1-5/16” – 12 TPI

Operating Temp: max 220 degrees Fahrenheit

Operating Pressure: max 150 PSI

Height: 3.50 in.

Width: 6.750 in.

Length: 7.750 in.

Filter Weight: 6.10 pounds

Sold as Kit including:
Filter Assembly, 115 Micron Element, and Mounting Bracket

Recommended: Extra Filter Element Part # 115-115

Suggested Replacement Parts:
~Filter Element Part # 115-115
~Window Part # 105-480
~O-Ring Kit Part # 120
~Filter Stud Kit Part # 135
~Air Fitting Part # 148
~Oil Pressure Port Fitting Part # 169
~Hi Flow Block Adapters also available

All Filters are either Clear or Black Anodized for
Protection and Durability

When using the Dry-Sump filter a 115 micron element is recommended.

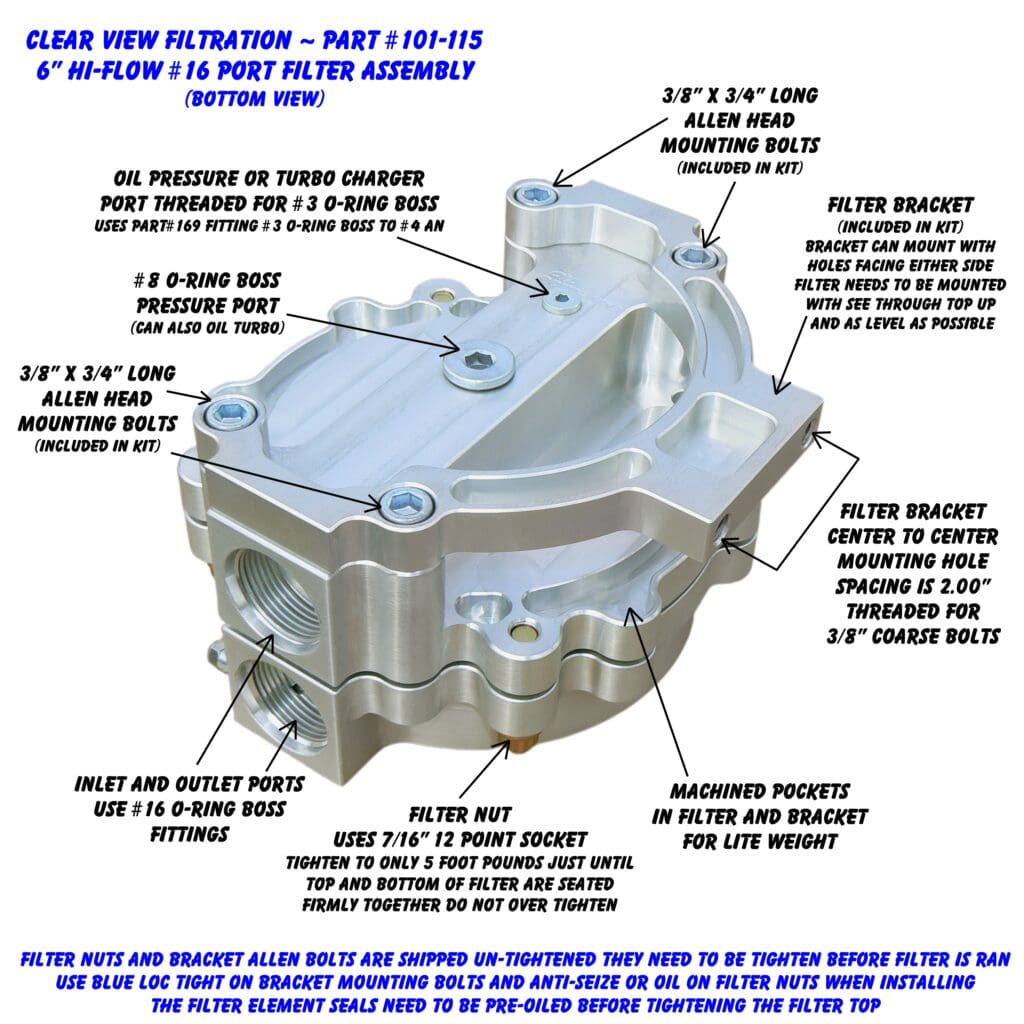

Filters have 2 Inlet and 2 Outlet Openings that are threaded for #16 O-Ring Boss – 1-5/16-12 TPI fittings. All 4 ports can be used and when using Dry Sump Filter the #16 fittings can go in and out of the same side of the filter assembly.

Images & Directions (if available):

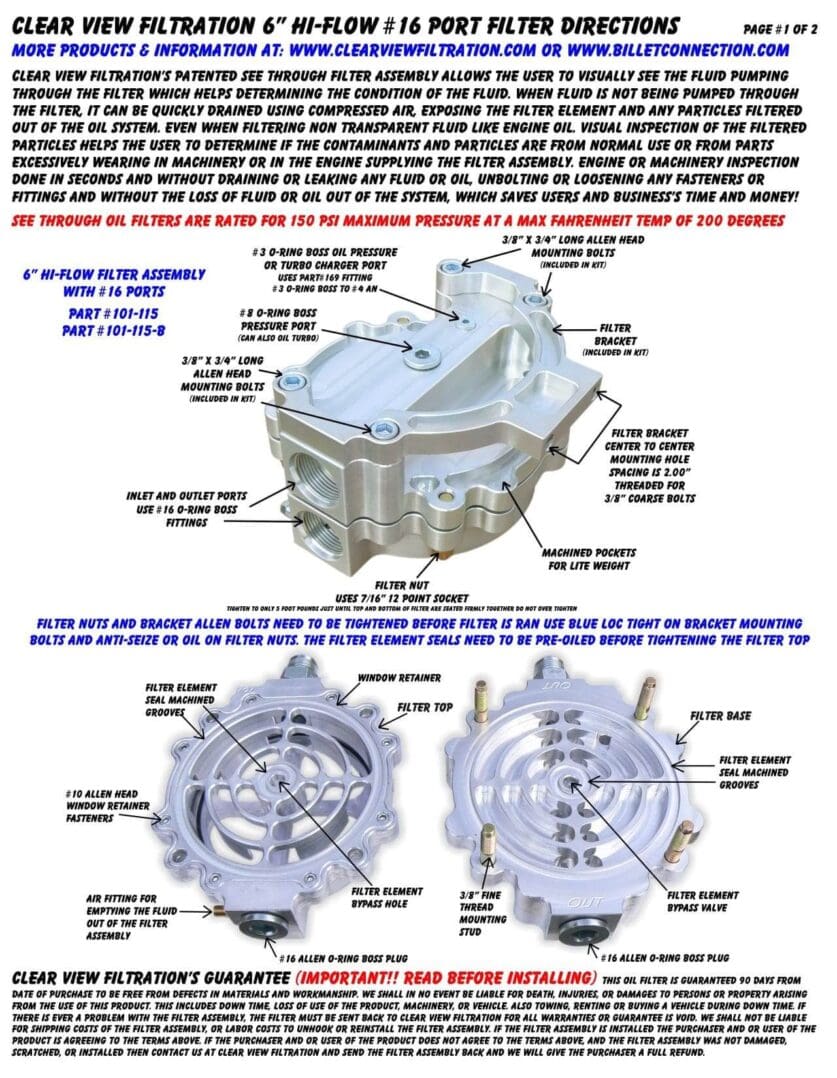

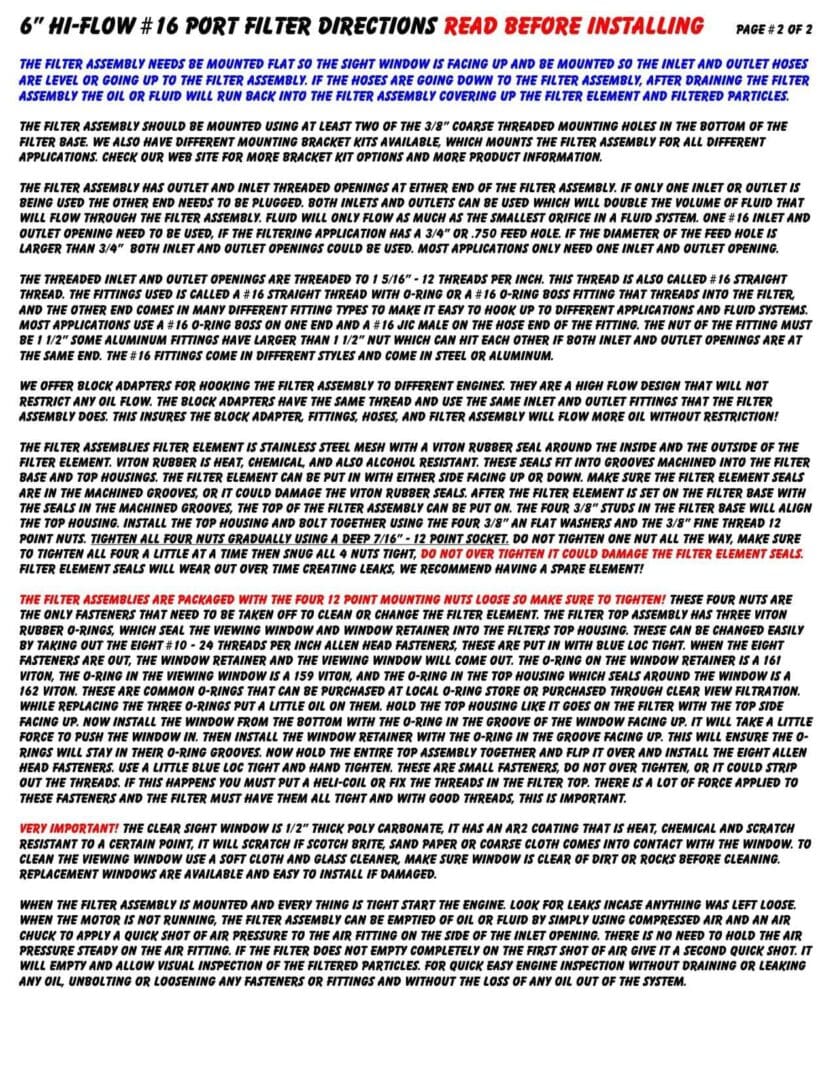

Click for Printable PDF: Direction Pg 1-2 for P#101-115 (pdf) | Direction Pg 2-2 for P#101-115 (pdf)
