4″ Filter Inline Mount Bracket
P # 495 & 495-B

Description

This 4” Filter Inline Mounting Bracket Kit. Can be used with all 4” Hi-Flow, Dry-Sump and Screw-On See Through Filter Assemblies. Mounts filter inline with mounting surface and ports.

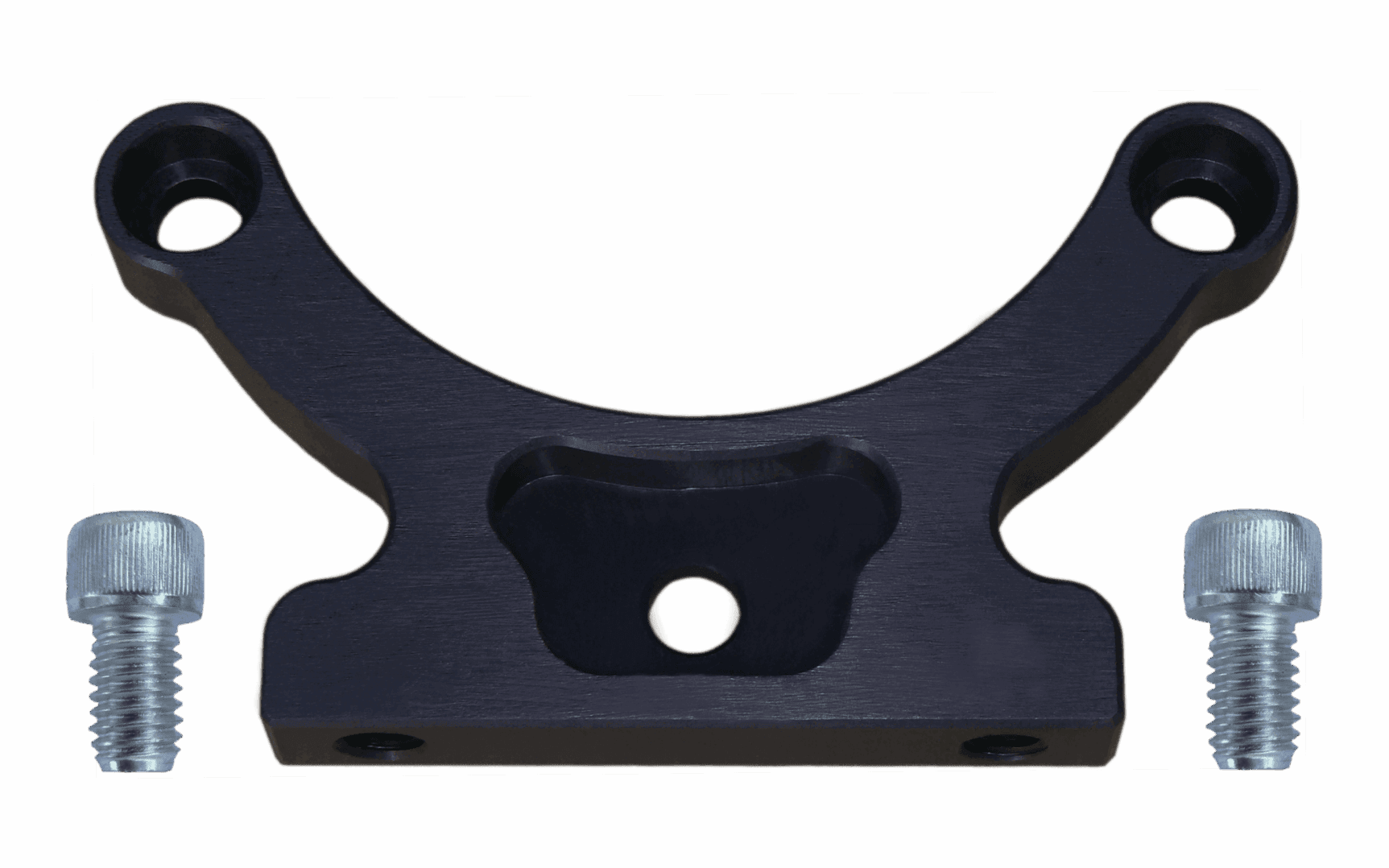

CVF Part Number for Clear anodized Mounting Bracket:  495

CVF Part Number for Black anodized Mounting Bracket:  495-B

Hardware Included: Yes

Bracket Material: 6061 T6 Billet Aluminum

Bracket Finish:  Clear or Black Anodized

Quantity: Sold as Kit

Notes: Can only be used with 4” See Through Filter Assemblies.

Description: The 4” Filter Inline Mounting Bracket Kit mounts to a flat surface so the See Through Filter Assembly Inlet and Outlet ports are facing straight out from the mounting surface. It can be mounted to a flat surface with two 3/8” mounting holes with a center to center hole spacing of 2.600”. Brackets are threaded for 3/8” coarse mounting bolts and are made out of 6061 T6 billet aluminum for strength and durability.

This Bracket Kit can also be mounted to the end of the driver’s side head of a SB Chevy using bracket kit Part # 485 or BB Chevy using bracket kit Part # 490. Bracket Kits.

Bracket Kits are anodized for easier maintenance. This kit comes with fasteners to bolt the bracket to the filter assemblies.

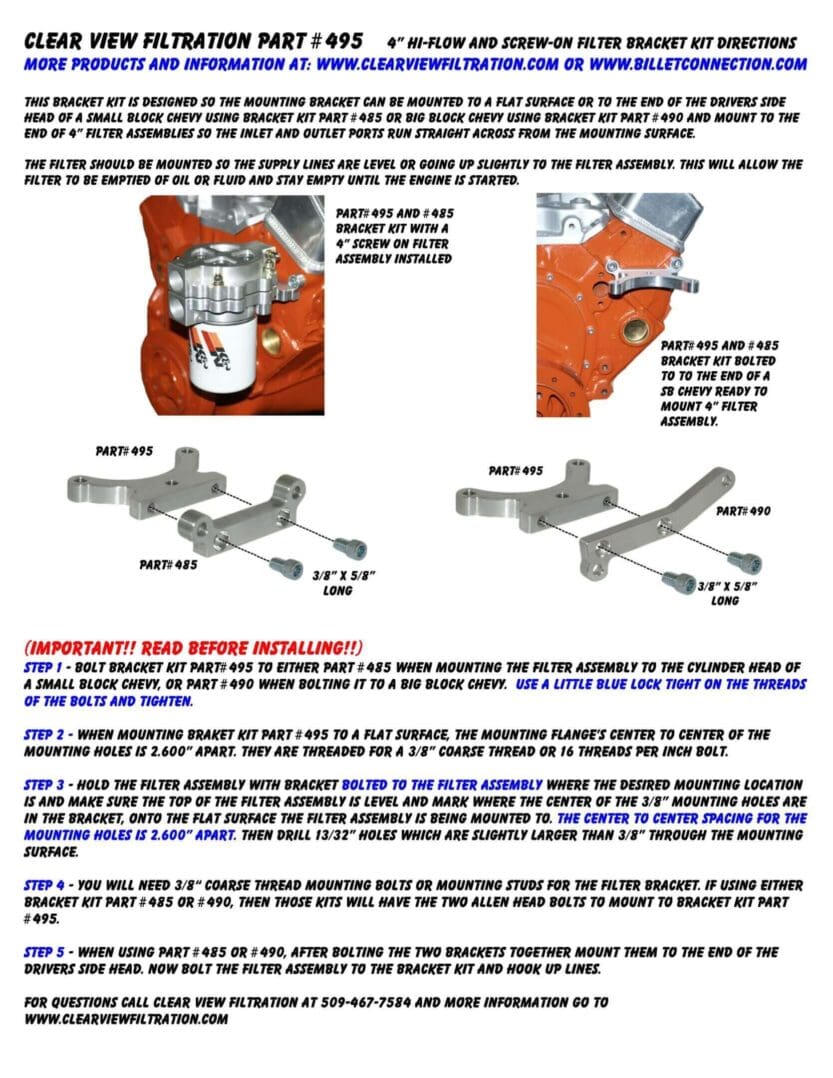

Product Images & Directions (if available): 4″ Filter Inline Mounting Bracket Dir Pg 1-1 for P# 495 (pdf)

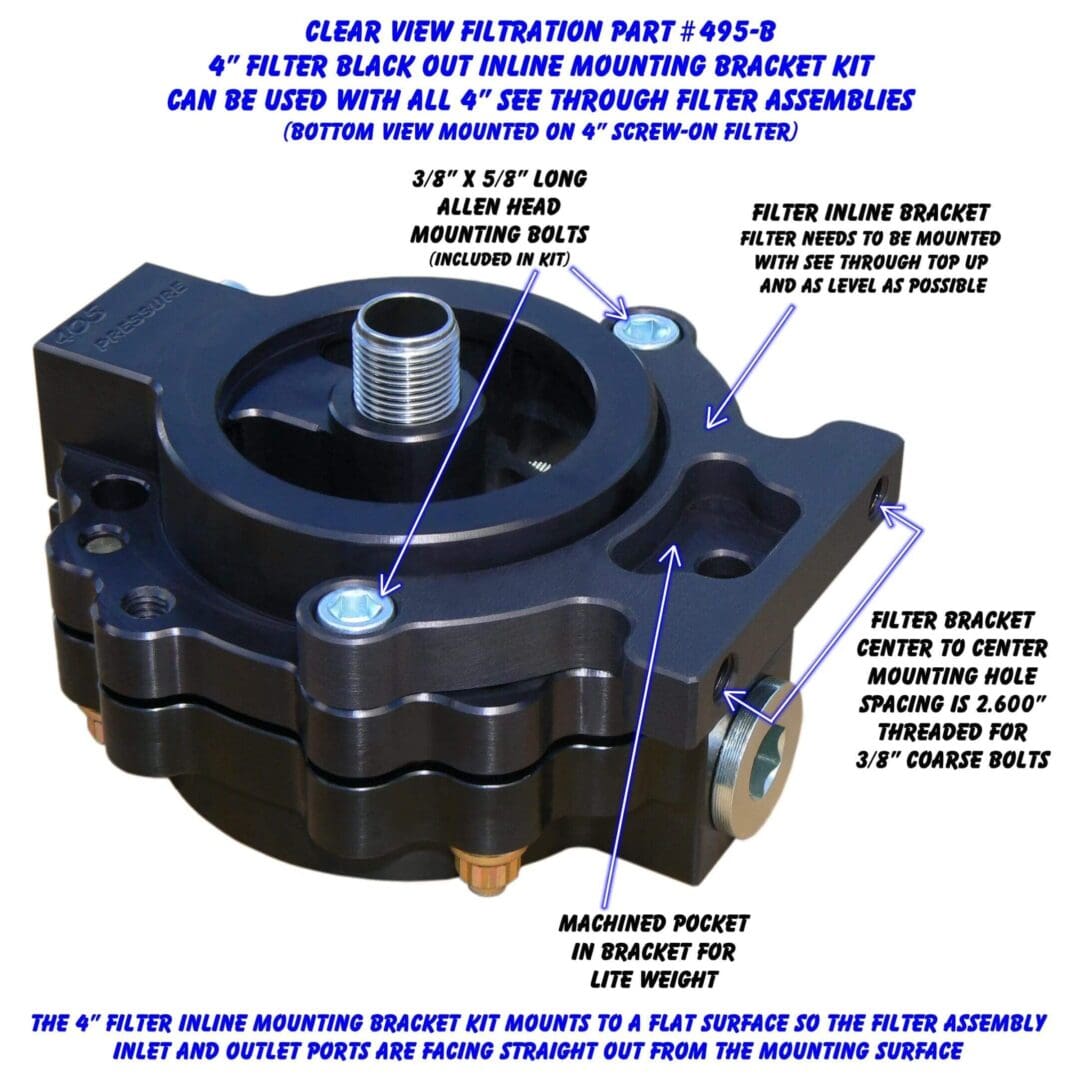

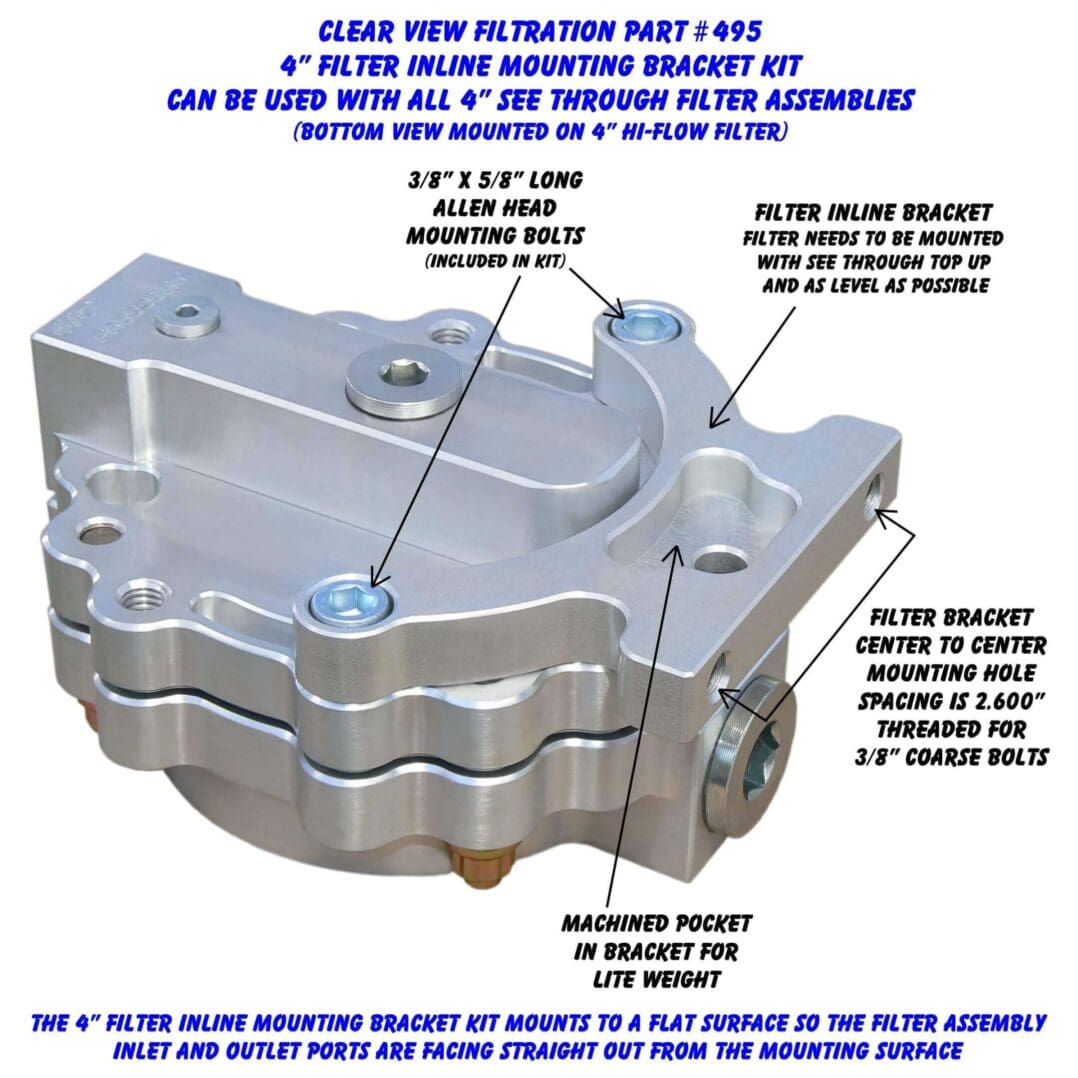

Detailed View with Components Explained:
