Cummins Block Adapter
P # 230 & 230-B

Description

Clear View Filtration’s Cummins Diesel Block Adapter Kit are designed for high flow without restrictions. This adapter screws onto the block where the stock disposable filter usually goes. Kit comes with Viton® O-Ring.

• CVF Part Number for Clear anodized Adapter:  230

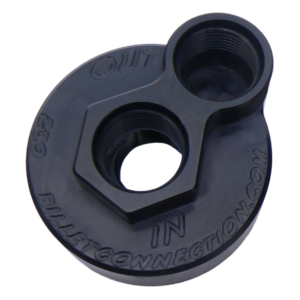

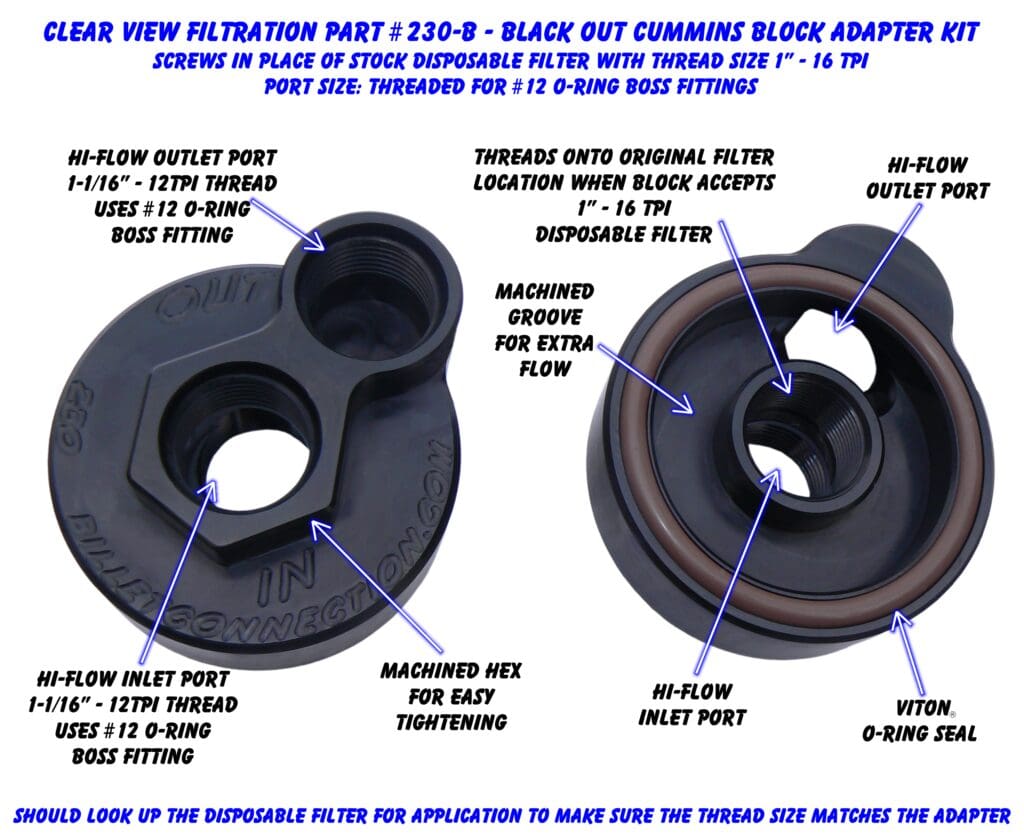

• CVF Part Number for Black anodized Adapter:  230-B
• Filter Adapter Style:  Screw-On Block Adapter
• Block Disposable Filter Threaded Insert Thread Size:  1.00″ X 16 TPI
• Inlet and Outlet Fitting Size:  #12 O-Ring Boss–1 1/16”-12 TPI
• Fittings Included:  No
• Sealing O-Ring:  Includes Viton® sealing O-Ring Part #231
• Inside O-Ring Groove Diameter:  2 1/2” ID
• Outside O-Ring Groove Diameter:  2 7/8” OD
• Adapter Material:  6061 T6 Billet Aluminum
• Adapter Finish:  Clear or Black Anodized
• Quantity:  Sold as Kit including Block Adapter and sealing O-Ring
• Suggested Replacement Parts:  Block Adapter O-Ring Kit Part # 231

Notes:  Adapter is used on Cummins Diesel Engines using a Disposable filter with 1.00” X 12 TPI threads

Description:  Cummins Diesel Block Adapters screw on where the stock disposable filters usually goon the block. Block adapter Ports are threaded for #12 O-Ring boss fittings. Block Adapters are engraved which Port is In and Out to help with install. Block adapters are plumbed with the Out Port of the block adapter to the In Port of the remote filter. The Out Port of the filter goes to the In Port of the block adapter. Also can work with Dry Sump setups by plugging the Outlet Port of the block adapter and just using the Inlet Port. Block Adapter Kits come with a Viton® sealing O-Ring. Cummins Diesel Replacement Block Adapter O-Ring Kit is Part # 231. Block adapters can fit more makes and models than listed. Check which disposable filter fits the application and compare thread and seal specs.

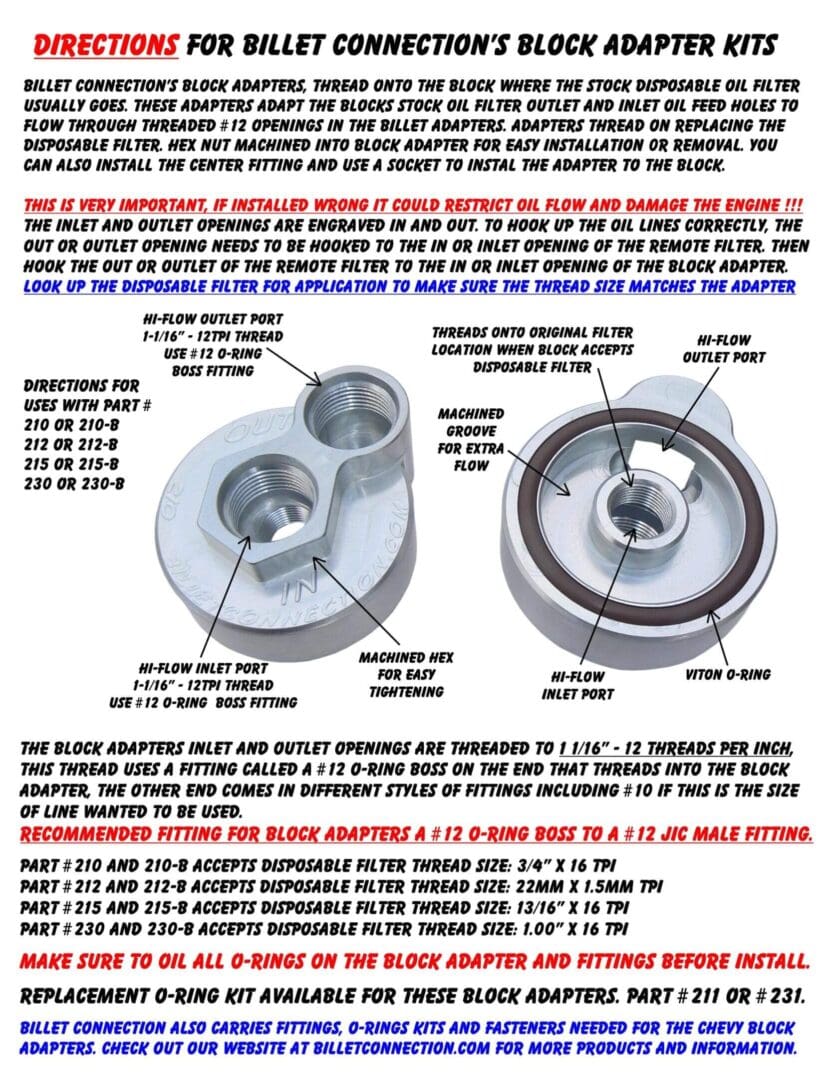

Click for Printable PDF: Direction Page for Cummins Adapter P#230 (pdf)

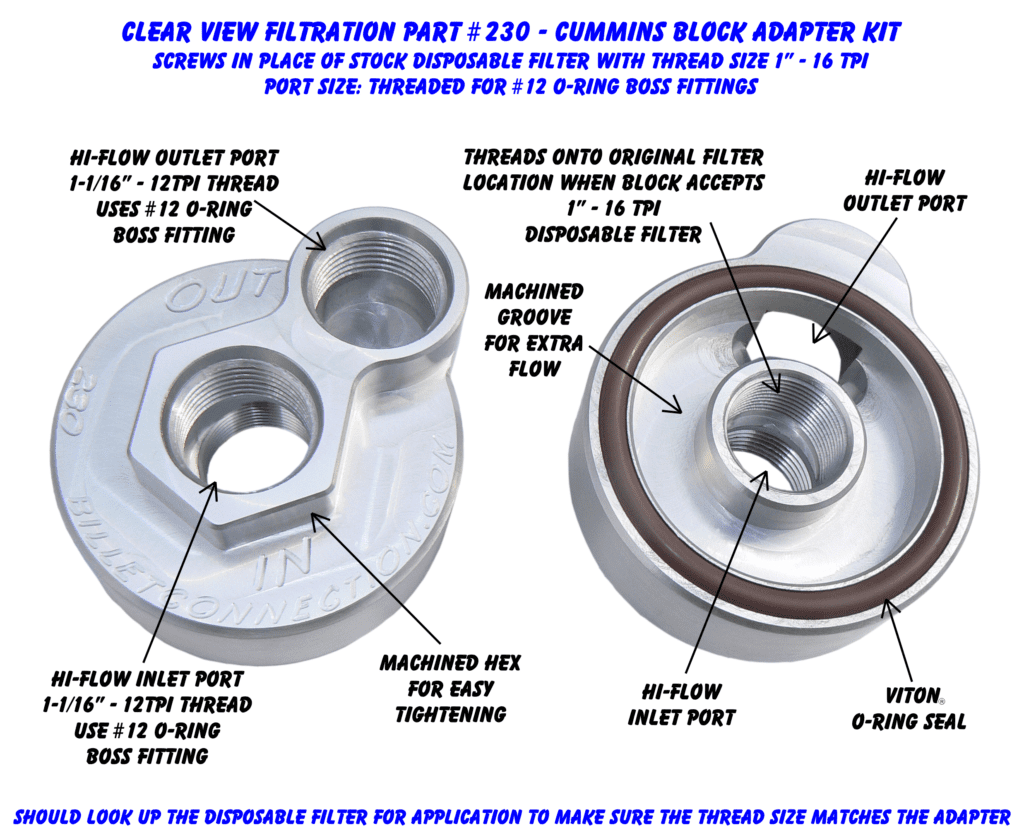

Detailed View with Components Explained
