Part # 201 O-Ring Kit fits Chevy Block Adapter

Description

Clear View Filtration’s Chevy Block Adapter Replacement O-Ring Kit fits Clear View Part # 200 Adapter. Kit consists of 5 O-Rings total. Three O-Rings for the Block Adapter and Two O-Rings for Mounting Bolts. All O-Rings are made of Viton® which is chemical and fuel resistant.

• O-Ring Material:  Viton®
• O-Ring Color:  Brown
• Block Adapter O-Ring Thickness:  1/8”
• Mounting Bolt O-Ring Thickness:  .040”
• Quantity:  Sold as Kit of 5

Notes: Can only be used with Part# 200 Chevy Block Adapter. Lightly lube O-Rings when installing.

Description: The Chevy Block Adapters Part #200 uses three O-Rings that seal the adapter against the block and bolts in place of the stock filter adapter. Two O-Rings create a double seal which stops oil from leaking outside the engine. The single inside O-Ring seals the inlet from the outlet opening. All Block Adapter have machined O-Ring grooves to keep O-Rings in place so they don’t blow out or leak. Chevy Block Adapter O-Ring Kits also include the two small O-Rings used around the Mounting Bolts to seal them from leaking. All O-Rings are made of Viton which is heat, chemical and fuel resistant.

Images & Directions (if available):

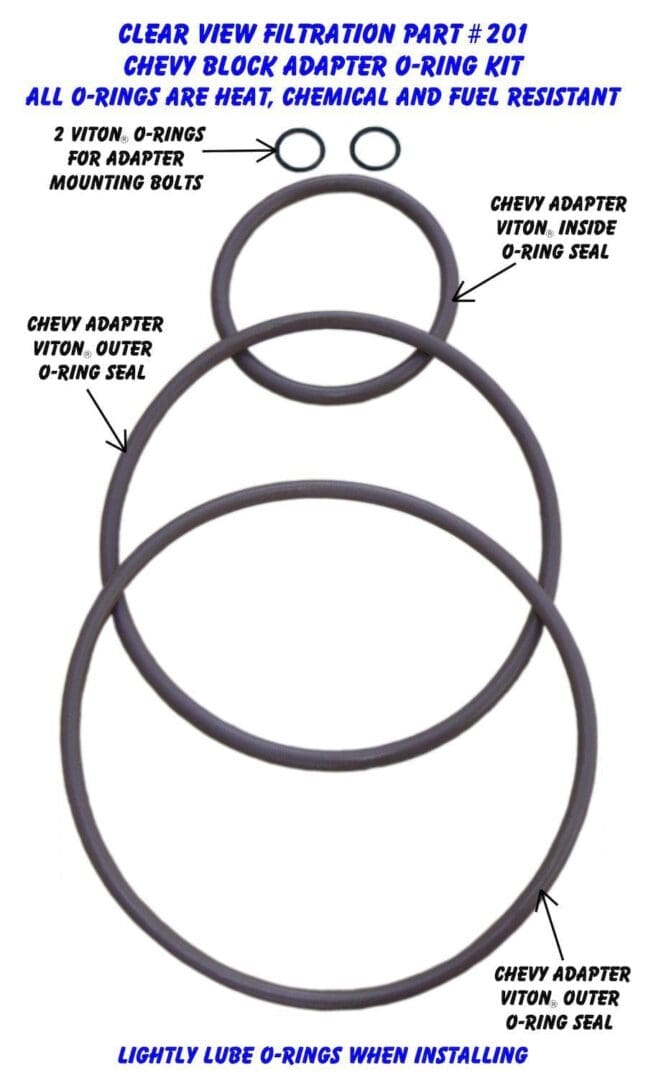

Detailed View with Components Explained
