BAE Cylinder Head Spring Tool
P # 9055

Description

This tool checks spring seat pressure up to 600 lbs. Tool is used with BAE Hemi Fat Heads when heads, rockers, and shafts are still installed on the engine.

• CVF Part Number:  9055
• Valve Spring Tester Style:  used with Hemi Fat Heads installed on engine
• Spring Pressure Tested:  Seat Pressure
• Spring Pressure Range:  0-600 lbs.
• Tool Handle Material:  T6061 Billet Aluminum
• Tool Rocker Hook Material:  T7075 Billet Aluminum
• Tool Material Finish:  Clear Anodize
• Fully assembled Tool Height:  7.250” in.
• Fully assembled Tool Length:  20.250” in.
• Fully assembled Tool Width:  2.500” in.
• Fully assembled Tool Weight:  2.15 pounds
• Quantity:  Sold as Kit

Technical Details: This tool was designed to check spring seat pressure up to 600 lbs. when the heads, rockers, and rocker shafts are still installed on the engine. This tool has an Intake hook and lower Exhaust hook to be able to put the handle in the best position for leverage. This makes checking spring seat pressure easy between rounds. The main body components that makeup this tool are machined out of 6061 billet aluminum for strength and durability. Spring Pressure tools are clear anodized for easier maintenance. Kit comes with Billet Aluminum Handle, BAE 4 or 5 Fat Head Rocker Hook, and a Retainer cup with 600 pound liquid filled Pressure Gauge installed.

Images & Directions (if available):

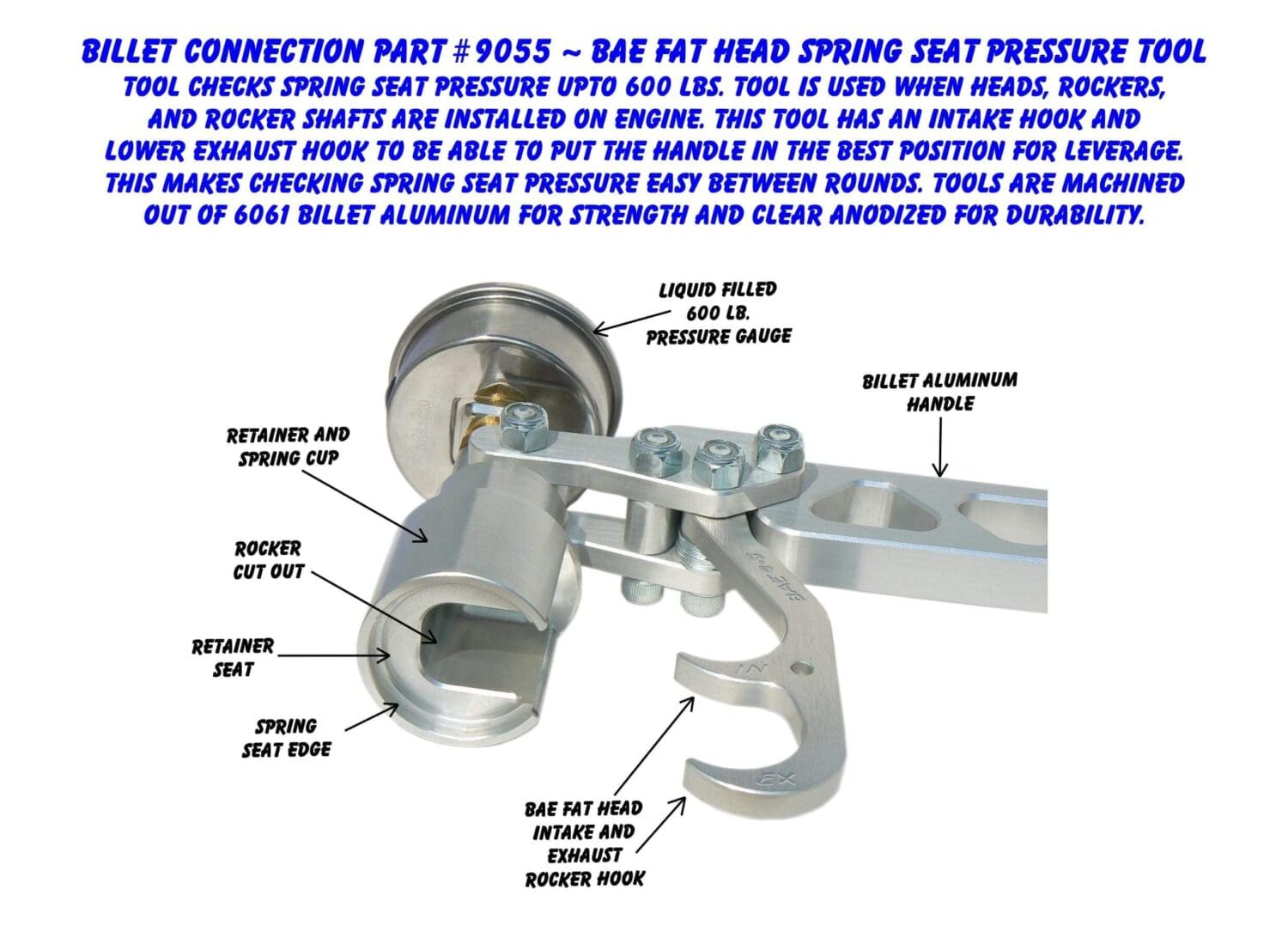

Detailed View with Components Explained

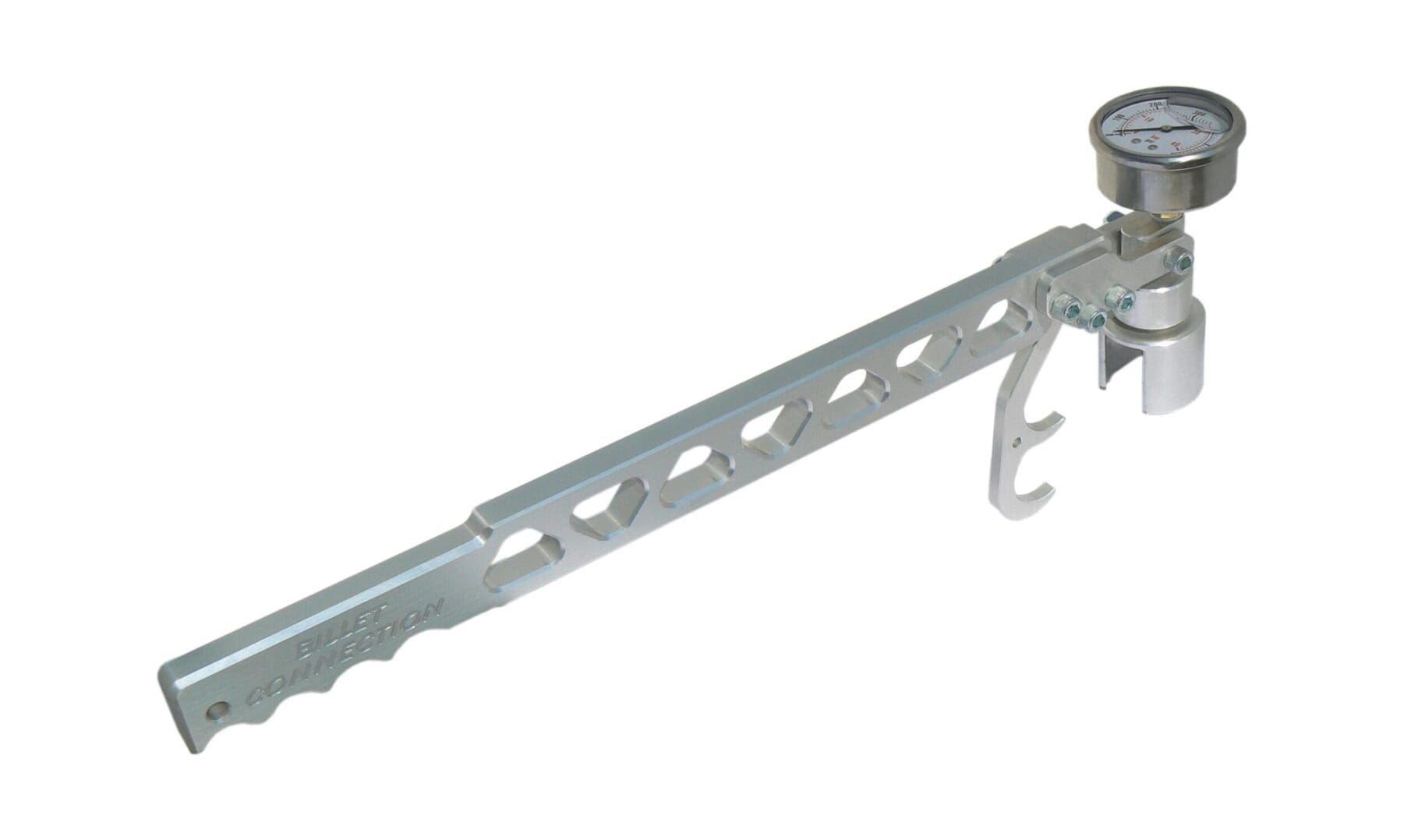

BAE Spring Pressure Tool
